Invalid keystore format 问题处理

# 一、问题现象：Gateway 启动阶段直接失败

在启动 Knox Gateway 服务时，进程未完成初始化即退出。通过 gateway.log 可以观察到如下关键错误信息：

ERROR knox.gateway - Failed to load keystore ... Invalid keystore format
FATAL knox.gateway - Failed to start gateway:
The identity keystore was not loaded properly - the provided password may not match the password for the keystore.

1
2
3

对应的完整堆栈如下（节选）：


[root@dev1 logs]# cat gateway.log
2025-12-12 10:52:08,311  INFO  knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: user.name=knox
2025-12-12 10:52:08,320  INFO  knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: user.dir=/home/knox
2025-12-12 10:52:08,320  INFO  knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.runtime.name=Java(TM) SE Runtime Environment
2025-12-12 10:52:08,321  INFO  knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.runtime.version=1.8.0_202-b08
2025-12-12 10:52:08,321  INFO  knox.gateway (GatewayServer.java:logSysProp(233)) - System Property: java.home=/opt/modules/jdk1.8.0_202/jre
2025-12-12 10:52:08,498  INFO  knox.gateway (GatewayConfigImpl.java:loadConfigResource(554)) - Loading configuration resource jar:file:/usr/bigtop/3.2.0/usr/lib/knox/bin/../lib/gateway-server-2.1.0.jar!/conf/gateway-default.xml
2025-12-12 10:52:08,580  INFO  knox.gateway (GatewayConfigImpl.java:loadConfigFile(542)) - Loading configuration file /usr/bigtop/3.2.0/usr/lib/knox/conf/gateway-site.xml
2025-12-12 10:52:08,580  INFO  knox.gateway (GatewayConfigImpl.java:initGatewayHomeDir(482)) - Using /usr/bigtop/3.2.0/usr/lib/knox/bin/.. as GATEWAY_HOME via system property.
2025-12-12 10:52:08,581  INFO  knox.gateway (GatewayConfigImpl.java:init(475)) - Cookie scoping feature enabled: false
2025-12-12 10:52:08,596  INFO  knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for MasterService
2025-12-12 10:52:09,029  INFO  knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for AliasService
2025-12-12 10:52:09,033  INFO  knox.gateway (AbstractServiceFactory.java:logServiceUsage(103)) - Using default implementation for AliasService
2025-12-12 10:52:09,055  INFO  knox.gateway (JettySSLService.java:init(74)) - Credential store for the gateway instance found - no need to create one.
2025-12-12 10:52:09,081  ERROR knox.gateway (DefaultKeystoreService.java:isKeyStoreAvailable(509)) - Failed to load keystore [filename=/usr/bigtop/3.2.0/usr/lib/knox/data/security/keystores/gateway.jks, type=jks]: java.io.IOException: Invalid keystore format
2025-12-12 10:52:09,082  FATAL knox.gateway (GatewayServer.java:main(191)) - Failed to start gateway: org.apache.knox.gateway.services.ServiceLifecycleException: The identity keystore was not loaded properly - the provided password may not match the password for the keystore.
org.apache.knox.gateway.services.ServiceLifecycleException: The identity keystore was not loaded properly - the provided password may not match the password for the keystore.
        at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:97) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.GatewayServiceFactory.create(GatewayServiceFactory.java:48) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.GatewayServiceFactory.create(GatewayServiceFactory.java:33) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.DefaultGatewayServices.init(DefaultGatewayServices.java:59) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.GatewayServer.main(GatewayServer.java:182) [gateway-server-2.1.0.jar:2.1.0]
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[?:1.8.0_202]
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[?:1.8.0_202]
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[?:1.8.0_202]
        at java.lang.reflect.Method.invoke(Method.java:498) ~[?:1.8.0_202]
        at org.apache.knox.gateway.launcher.Invoker.invokeMainMethod(Invoker.java:68) [gateway.jar:?]
        at org.apache.knox.gateway.launcher.Invoker.invoke(Invoker.java:39) [gateway.jar:?]
        at org.apache.knox.gateway.launcher.Command.run(Command.java:103) [gateway.jar:?]
        at org.apache.knox.gateway.launcher.Launcher.run(Launcher.java:75) [gateway.jar:?]
        at org.apache.knox.gateway.launcher.Launcher.main(Launcher.java:52) [gateway.jar:?]
Caused by: org.apache.knox.gateway.services.security.KeystoreServiceException: java.io.IOException: Invalid keystore format
        at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeystoreForGatewayAvailable(DefaultKeystoreService.java:263) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:81) ~[gateway-server-2.1.0.jar:2.1.0]
        ... 13 more
Caused by: java.io.IOException: Invalid keystore format
        at sun.security.provider.JavaKeyStore.engineLoad(JavaKeyStore.java:663) ~[?:1.8.0_202]
        at sun.security.provider.JavaKeyStore$JKS.engineLoad(JavaKeyStore.java:56) ~[?:1.8.0_202]
        at sun.security.provider.KeyStoreDelegator.engineLoad(KeyStoreDelegator.java:224) ~[?:1.8.0_202]
        at sun.security.provider.JavaKeyStore$DualFormatJKS.engineLoad(JavaKeyStore.java:70) ~[?:1.8.0_202]
        at java.security.KeyStore.load(KeyStore.java:1445) ~[?:1.8.0_202]
        at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeyStoreAvailable(DefaultKeystoreService.java:504) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.security.impl.DefaultKeystoreService.isKeystoreForGatewayAvailable(DefaultKeystoreService.java:260) ~[gateway-server-2.1.0.jar:2.1.0]
        at org.apache.knox.gateway.services.security.impl.JettySSLService.init(JettySSLService.java:81) ~[gateway-server-2.1.0.jar:2.1.0]
        ... 13 more
[root@dev1 logs]#

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

现象特征总结

Knox 进程尚未监听端口即退出
错误集中在 Keystore 加载阶段
日志明确指向 password 不匹配 / keystore 无法解析

# 二、问题根因：gateway.jks 与当前 master secret 不一致

# 2.1 Knox 中 keystore 的生成逻辑

Knox 在首次启动时，会基于 master secret 自动生成并维护一整套安全文件：

文件/组件	作用说明
`gateway.jks`	Gateway 自身的身份与 SSL keystore
credential store	存储加密后的敏感配置
alias 信息	由 MasterService 统一加解密

核心事实

这些文件的加密口令来源只有一个：master secret

# 2.2 触发问题的典型场景

只要满足以下任意条件之一，就会命中该问题：

目录中 已经存在 gateway.jks
但 master secret 被修改 / 重置
或当前运行环境中使用的 master secret 与最初生成 keystore 时不一致

此时 Knox 的行为是：

keystore 文件存在 keystore 内容无法解密 → 抛出 Invalid keystore format

# 三、为何 Ambari 页面无法修改 master secret？

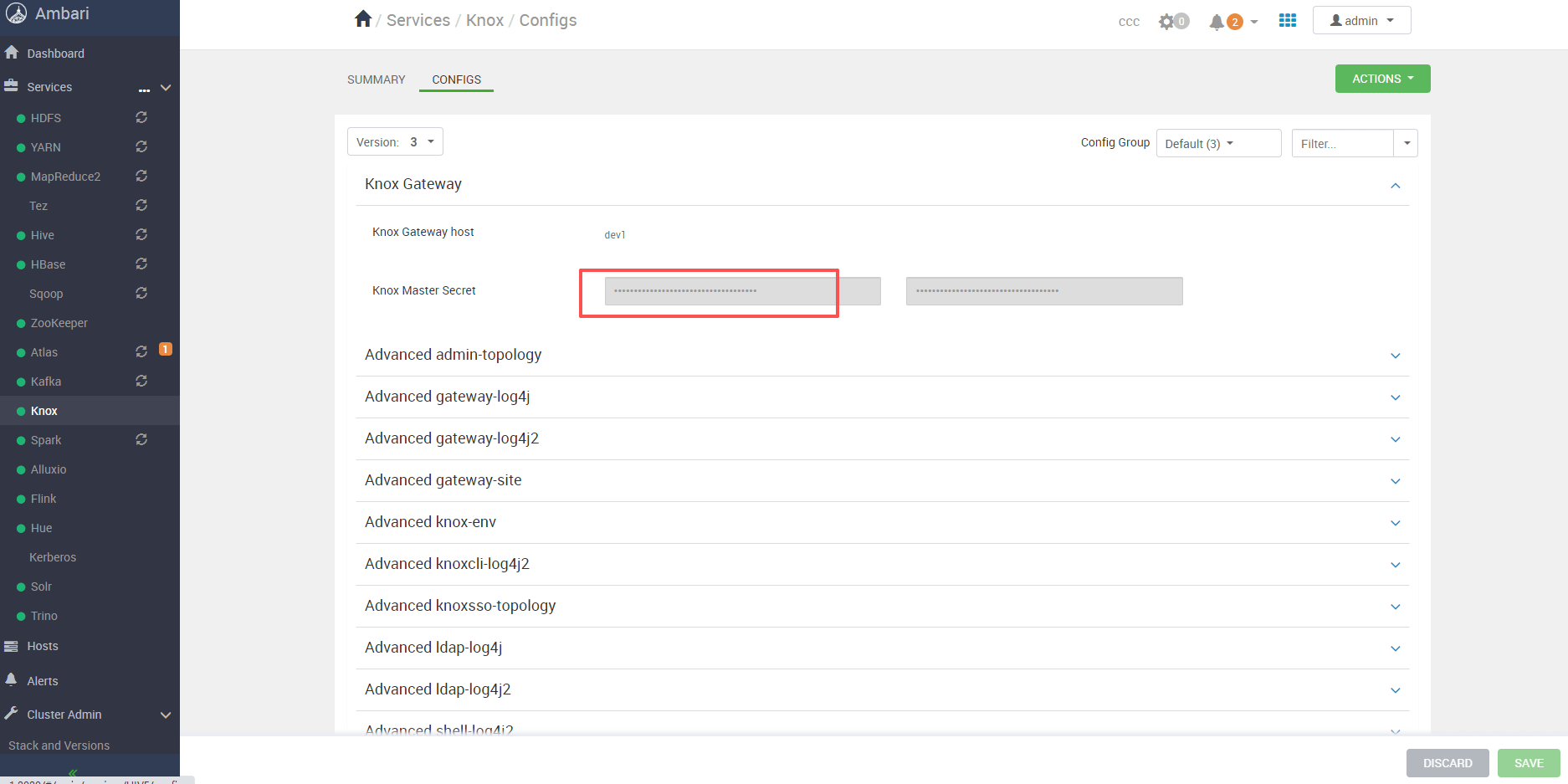

在 Ambari 的 Knox 配置页面中，master.secret 通常呈现为只读状态：

ambari-master-secret-readonly

这是刻意的设计

master secret 只在首次初始化时生效
Ambari 禁止 UI 层直接修改
目的是避免无意操作导致 所有已有 keystore 同时失效

这也是为什么：

改配置文件无效
改 UI 配置无效
但 Knox 仍然继续报 keystore 错误

# 四、这个密码到底是什么？

这里的 “password” 并不是某个临时生成的随机值，而是：

Knox 安装阶段配置的 master secret

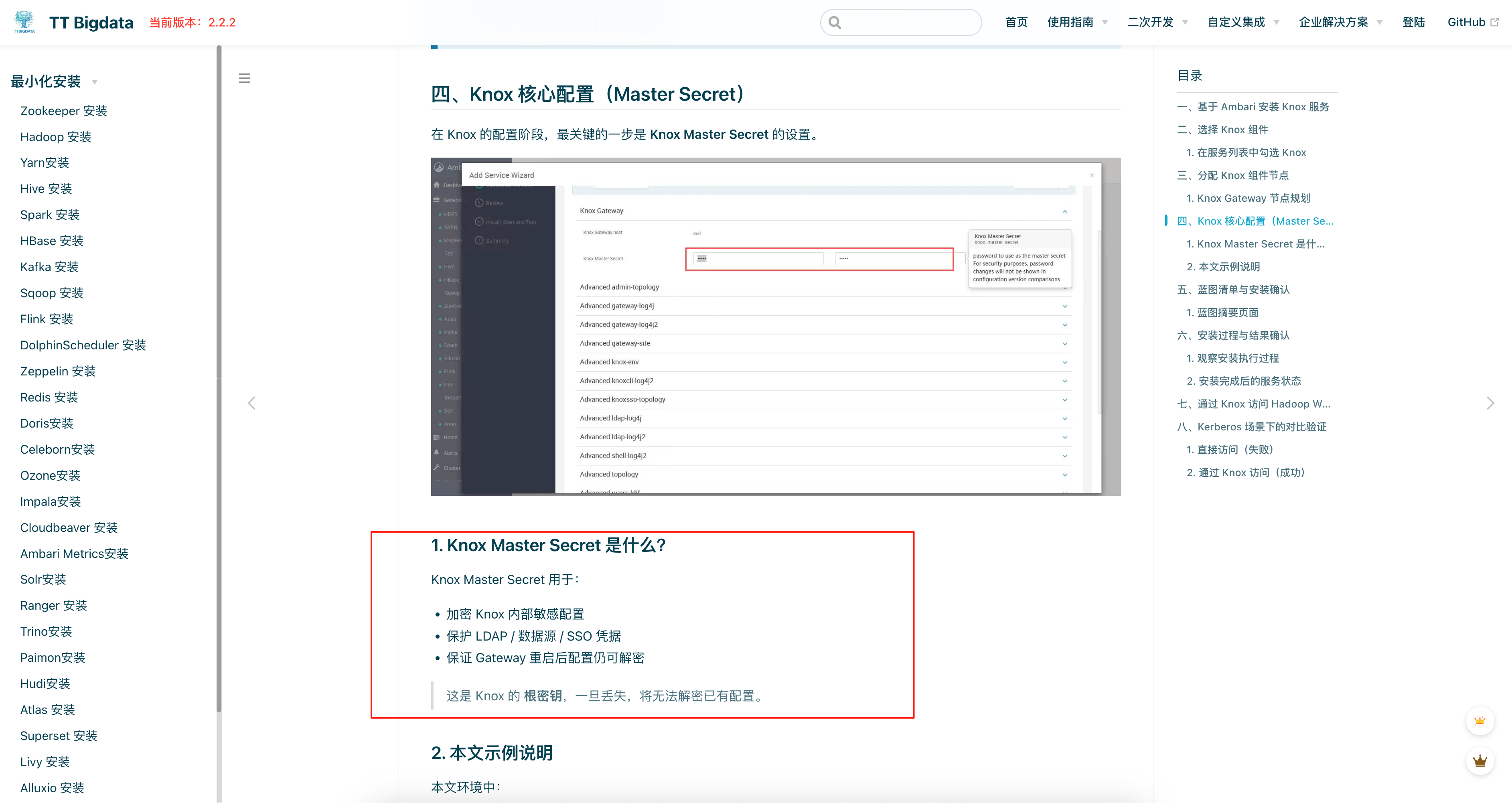

如果时间较久已经遗忘，可以回看当时的 安装文档 Knox安装指导手册 (opens new window)

master-secret-doc

关键结论

gateway.jks 的解密口令 = 当初配置的 master secret

# 五、正确处理方式（可重建场景）

如果满足以下条件之一：

首次部署
测试环境
可以接受重新生成 keystore

那么处理方式非常直接。

# 5.1 删除已有 gateway.jks

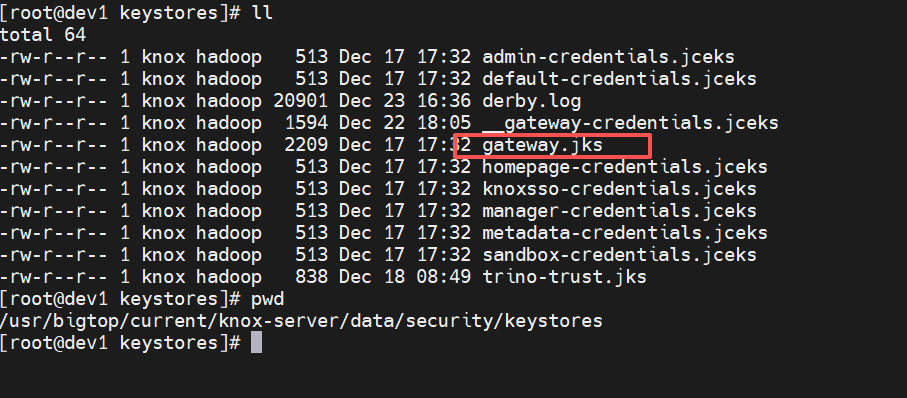

在 Bigtop 环境中，文件路径通常为：

/usr/bigtop/current/knox-server/data/security/keystores/gateway.jks

示意如下：

gateway-jks-path

执行删除：

rm -f /usr/bigtop/current/knox-server/data/security/keystores/gateway.jks

操作说明

只删除 gateway.jks
不需要手工创建新文件
不需要自行生成证书

# 5.2 通过 Ambari 重启 Knox

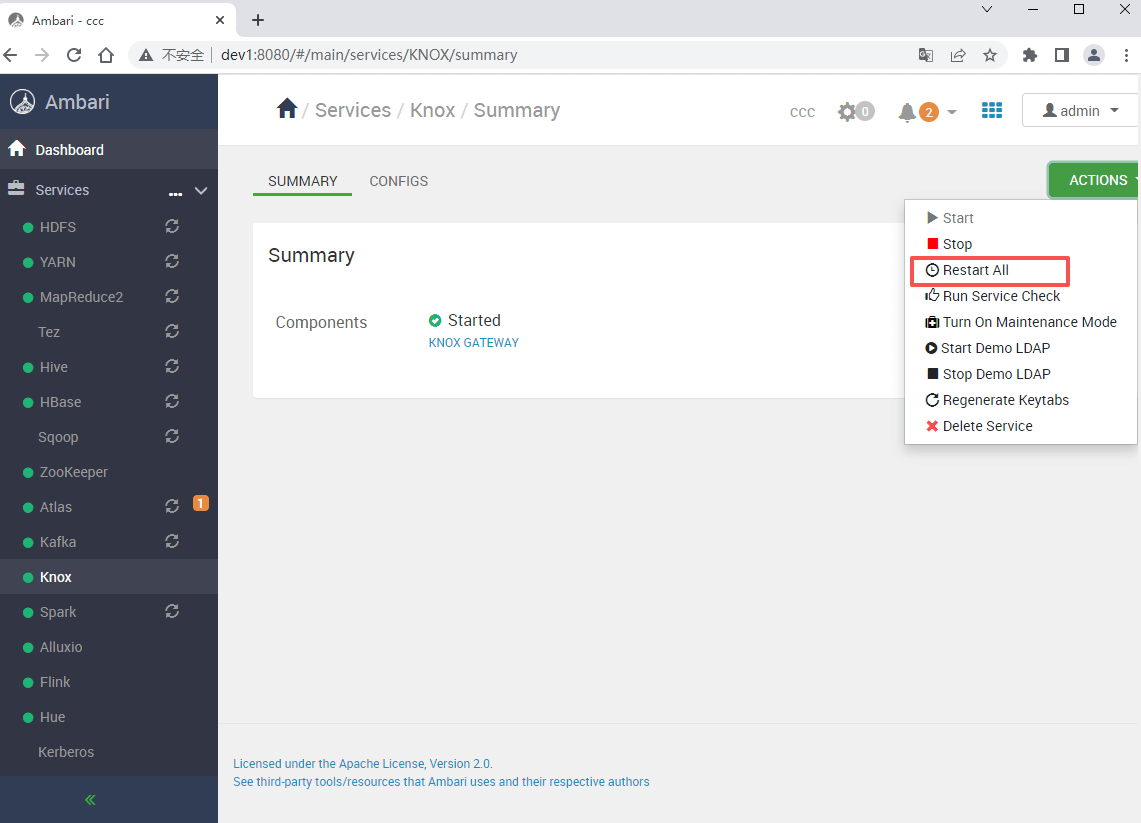

回到 Ambari 首页，直接重启 Knox 服务：

restart-knox

Knox 在启动过程中会自动完成：

读取当前 master secret
重新生成 gateway.jks
初始化 SSL 与 Credential Store
正常拉起 Jetty

#Knox #Bigtop #错误排查
