第二步：Relocated Jar 兼容修复

本节聚焦在 Hadoop 3.3.4 升级后引入的 relocated jar 路径变动问题，例如 protobuf、guava 这些常用依赖，经常在大版本升级后出现包名变化或 shaded jar 的“重定位”现象，导致 Impala 源码无法直接编译通过。

场景在 Hadoop3 适配中极为常见，务必引起重视！

---

改造核心说明

提示

主要修复思路为统一依赖路径，全部切换为新版兼容的 groupId，同时修正 pom.xml 依赖与实际 import 路径，避免 shaded/repackaged 引起的类冲突。

本补丁具体修复点如下：

变更项	说明
commons-lang	从 org.apache.commons.lang ➡️ org.apache.commons.lang3
protobuf Struct	从 com.cloudera.cloud.storage.relocated.protobuf ➡️ com.google.protobuf
guava Lists	从 org.apache.iceberg.relocated.com.google.common.collect ➡️ com.google.common.collect
fe/pom.xml 依赖	新增 protobuf-java 3.19.1 明确版本依赖，兼容新 Hadoop3 生态

必改 这些都是编译期的 hard break，不做迁移直接 build fail！

架构理解

下面这张图可以直观理解Impala 构建依赖链路下 relocated jar 的影响路径：

• 最终目的是所有依赖的实际类加载都能走新版的标准路径，消除 shaded 包冲突

笔记

类似的 relocated jar 问题，在 Hadoop 3.x 生态（尤其是 Spark、Flink、HBase）也大量存在，建议养成遇到编译期依赖冲突时，优先核查 jar 包重定位和 groupId 变更。

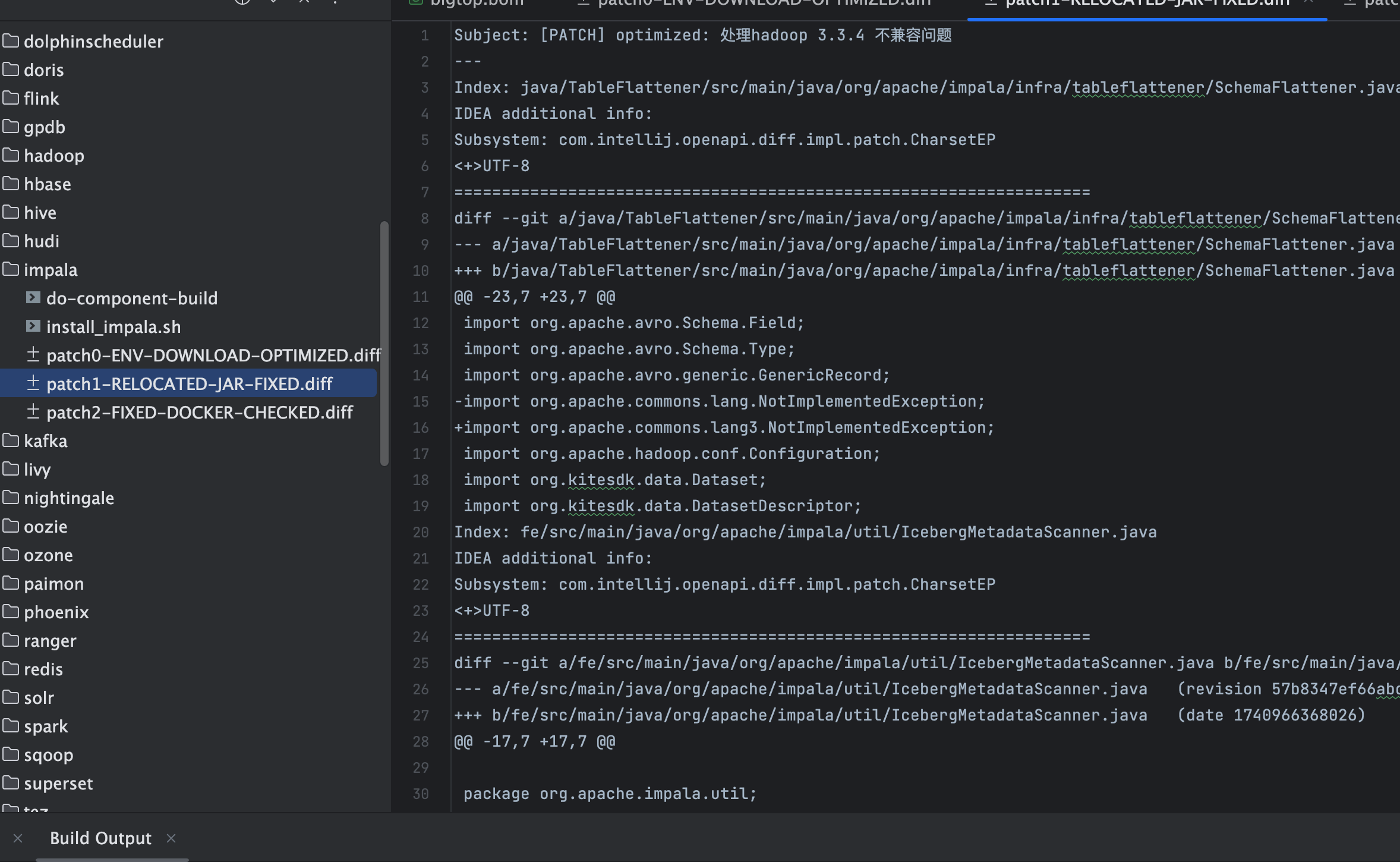

补丁文件与内容

• 位置： bigtop-packages/src/common/impala/patch1-RELOCATED-JAR-FIXED.diff

• 内容如下：

Subject: [PATCH] optimized: 处理hadoop 3.3.4 不兼容问题
---
Index: java/TableFlattener/src/main/java/org/apache/impala/infra/tableflattener/SchemaFlattener.java
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/java/TableFlattener/src/main/java/org/apache/impala/infra/tableflattener/SchemaFlattener.java b/java/TableFlattener/src/main/java/org/apache/impala/infra/tableflattener/SchemaFlattener.java
--- a/java/TableFlattener/src/main/java/org/apache/impala/infra/tableflattener/SchemaFlattener.java	(revision 57b8347ef66abdb645badf925d8150e2a32f0e44)
+++ b/java/TableFlattener/src/main/java/org/apache/impala/infra/tableflattener/SchemaFlattener.java	(date 1740982071128)
@@ -23,7 +23,7 @@
 import org.apache.avro.Schema.Field;
 import org.apache.avro.Schema.Type;
 import org.apache.avro.generic.GenericRecord;
-import org.apache.commons.lang.NotImplementedException;
+import org.apache.commons.lang3.NotImplementedException;
 import org.apache.hadoop.conf.Configuration;
 import org.kitesdk.data.Dataset;
 import org.kitesdk.data.DatasetDescriptor;
Index: fe/src/main/java/org/apache/impala/util/IcebergMetadataScanner.java
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/fe/src/main/java/org/apache/impala/util/IcebergMetadataScanner.java b/fe/src/main/java/org/apache/impala/util/IcebergMetadataScanner.java
--- a/fe/src/main/java/org/apache/impala/util/IcebergMetadataScanner.java	(revision 57b8347ef66abdb645badf925d8150e2a32f0e44)
+++ b/fe/src/main/java/org/apache/impala/util/IcebergMetadataScanner.java	(date 1740966368026)
@@ -17,7 +17,7 @@

 package org.apache.impala.util;

-import com.cloudera.cloud.storage.relocated.protobuf.Struct;
+import com.google.protobuf.Struct;;
 import com.google.common.base.Preconditions;

 import java.util.Iterator;
Index: fe/src/main/java/org/apache/impala/util/IcebergSchemaConverter.java
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/fe/src/main/java/org/apache/impala/util/IcebergSchemaConverter.java b/fe/src/main/java/org/apache/impala/util/IcebergSchemaConverter.java
--- a/fe/src/main/java/org/apache/impala/util/IcebergSchemaConverter.java	(revision 57b8347ef66abdb645badf925d8150e2a32f0e44)
+++ b/fe/src/main/java/org/apache/impala/util/IcebergSchemaConverter.java	(date 1740970508500)
@@ -30,7 +30,7 @@
 import org.apache.iceberg.PartitionSpec;
 import org.apache.iceberg.Schema;
 import org.apache.iceberg.hive.HiveSchemaUtil;
-import org.apache.iceberg.relocated.com.google.common.collect.Lists;
+import com.google.common.collect.Lists;
 import org.apache.iceberg.types.Types;
 import org.apache.impala.analysis.IcebergPartitionField;
 import org.apache.impala.analysis.IcebergPartitionSpec;
Index: fe/src/main/java/org/apache/impala/util/MigrateTableUtil.java
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/fe/src/main/java/org/apache/impala/util/MigrateTableUtil.java b/fe/src/main/java/org/apache/impala/util/MigrateTableUtil.java
--- a/fe/src/main/java/org/apache/impala/util/MigrateTableUtil.java	(revision 57b8347ef66abdb645badf925d8150e2a32f0e44)
+++ b/fe/src/main/java/org/apache/impala/util/MigrateTableUtil.java	(date 1740970508491)
@@ -40,7 +40,7 @@
 import org.apache.iceberg.Table;
 import org.apache.iceberg.catalog.TableIdentifier;
 import org.apache.iceberg.data.TableMigrationUtil;
-import org.apache.iceberg.relocated.com.google.common.collect.Lists;
+import com.google.common.collect.Lists;
 import org.apache.impala.analysis.TableName;
 import org.apache.impala.catalog.FeCatalog;
 import org.apache.impala.catalog.FeFsPartition;
Index: fe/pom.xml
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/fe/pom.xml b/fe/pom.xml
--- a/fe/pom.xml	(revision 57b8347ef66abdb645badf925d8150e2a32f0e44)
+++ b/fe/pom.xml	(date 1740984830952)
@@ -613,6 +613,12 @@
       <version>1.72</version>
       <scope>test</scope>
     </dependency>
+
+    <dependency>
+      <groupId>com.google.protobuf</groupId>
+      <artifactId>protobuf-java</artifactId>
+      <version>3.19.1</version>
+    </dependency>
   </dependencies>

   <reporting>
