第二步：补丁文件必须命名为 patch0-DATASOURCE-OPTIMIZED.diff 并放到指定目录

在执行依赖适配之前，请先将补丁文件命名为 patch0-DATASOURCE-OPTIMIZED.diff ，并放到 bigtop-packages/src/common/dolphinscheduler/ 目录下。这一步是自动 patch 流程能否生效的关键，切勿遗漏或随意更名！

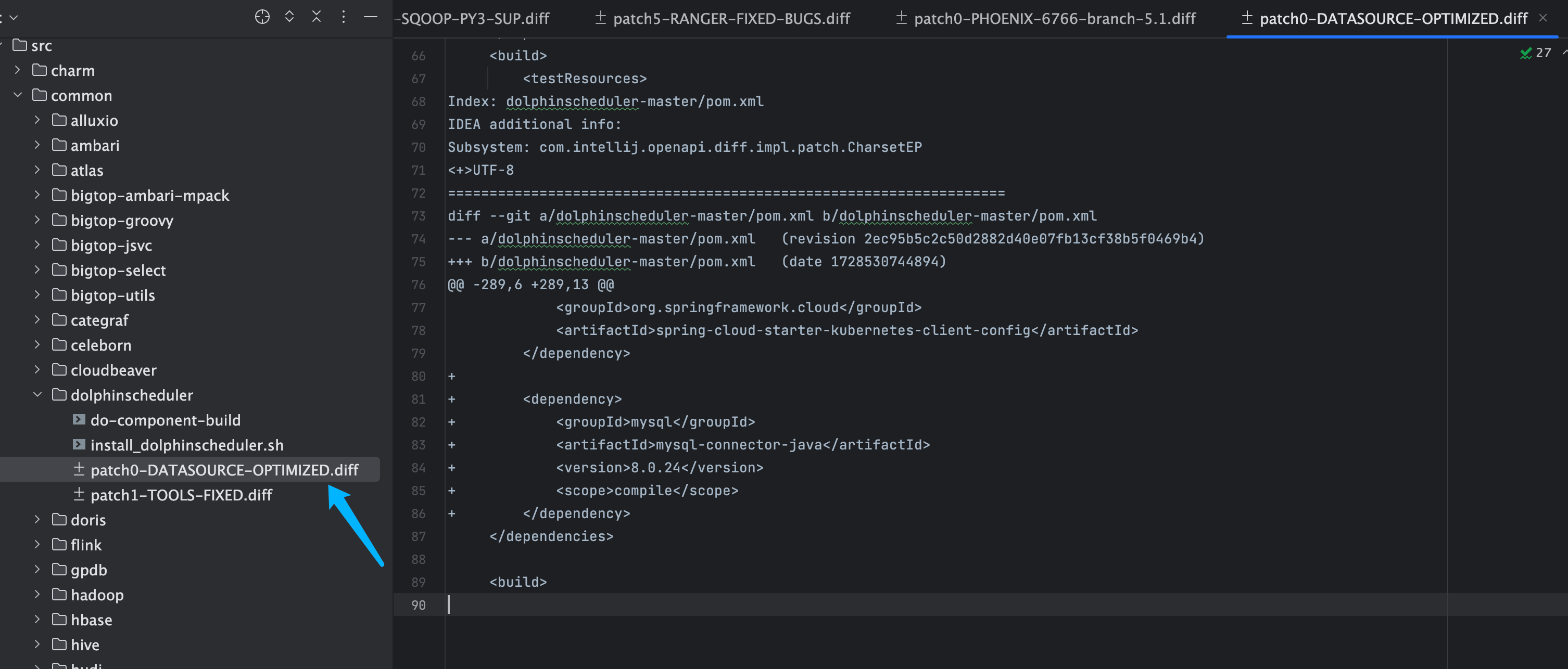

如上图所示

• 文件名必须为 patch0-DATASOURCE-OPTIMIZED.diff，**
• 路径为 bigtop-packages/src/common/dolphinscheduler/
• 不要随意更名，不要放错目录，否则自动 patch 步骤会直接失效。**

---

patch0-DATASOURCE-OPTIMIZED.diff 补丁内容

该补丁用于批量为 dolphinscheduler worker、master、api、alert-server 等模块补全 MySQL JDBC 驱动依赖，解决企业环境下的数据库连接问题。

完整的diff 文件

Subject: [PATCH] optimized: 增加mysql 驱动
---
Index: dolphinscheduler-worker/pom.xml
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/dolphinscheduler-worker/pom.xml b/dolphinscheduler-worker/pom.xml
--- a/dolphinscheduler-worker/pom.xml	(revision 2ec95b5c2c50d2882d40e07fb13cf38b5f0469b4)
+++ b/dolphinscheduler-worker/pom.xml	(date 1728530771659)
@@ -118,6 +118,13 @@
             <artifactId>zt-zip</artifactId>
         </dependency>

+        <dependency>
+            <groupId>mysql</groupId>
+            <artifactId>mysql-connector-java</artifactId>
+            <version>8.0.24</version>
+            <scope>compile</scope>
+        </dependency>
+
     </dependencies>

     <build>
Index: dolphinscheduler-alert/dolphinscheduler-alert-server/pom.xml
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/dolphinscheduler-alert/dolphinscheduler-alert-server/pom.xml b/dolphinscheduler-alert/dolphinscheduler-alert-server/pom.xml
--- a/dolphinscheduler-alert/dolphinscheduler-alert-server/pom.xml	(revision 2ec95b5c2c50d2882d40e07fb13cf38b5f0469b4)
+++ b/dolphinscheduler-alert/dolphinscheduler-alert-server/pom.xml	(date 1728530601997)
@@ -71,6 +71,13 @@
             <artifactId>spring-boot-starter-test</artifactId>
             <scope>test</scope>
         </dependency>
+
+        <dependency>
+            <groupId>mysql</groupId>
+            <artifactId>mysql-connector-java</artifactId>
+            <version>8.0.24</version>
+            <scope>compile</scope>
+        </dependency>
     </dependencies>

     <build>
Index: dolphinscheduler-api/pom.xml
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/dolphinscheduler-api/pom.xml b/dolphinscheduler-api/pom.xml
--- a/dolphinscheduler-api/pom.xml	(revision 2ec95b5c2c50d2882d40e07fb13cf38b5f0469b4)
+++ b/dolphinscheduler-api/pom.xml	(date 1728530716579)
@@ -236,6 +236,12 @@
             <groupId>org.apache.dolphinscheduler</groupId>
             <artifactId>dolphinscheduler-extract-alert</artifactId>
         </dependency>
+        <dependency>
+            <groupId>mysql</groupId>
+            <artifactId>mysql-connector-java</artifactId>
+            <version>8.0.24</version>
+            <scope>compile</scope>
+        </dependency>
     </dependencies>
     <build>
         <testResources>
Index: dolphinscheduler-master/pom.xml
IDEA additional info:
Subsystem: com.intellij.openapi.diff.impl.patch.CharsetEP
<+>UTF-8
===================================================================
diff --git a/dolphinscheduler-master/pom.xml b/dolphinscheduler-master/pom.xml
--- a/dolphinscheduler-master/pom.xml	(revision 2ec95b5c2c50d2882d40e07fb13cf38b5f0469b4)
+++ b/dolphinscheduler-master/pom.xml	(date 1728530744894)
@@ -289,6 +289,13 @@
             <groupId>org.springframework.cloud</groupId>
             <artifactId>spring-cloud-starter-kubernetes-client-config</artifactId>
         </dependency>
+
+        <dependency>
+            <groupId>mysql</groupId>
+            <artifactId>mysql-connector-java</artifactId>
+            <version>8.0.24</version>
+            <scope>compile</scope>
+        </dependency>
     </dependencies>

     <build>
