修改ambari样式-前端View扩展[二]

# 3. 基于 displayType 的渲染

image-20241004164823162

# 3.1 作用

  • 定义:基于 displayType 控制页面控件类型和展示样式。适合高级配置场景,可以灵活指定不同类型的表单控件(如单选按钮、复选框、文本框等)。
  • 使用场景:适合属性繁多、控件种类丰富的高级配置页面,便于多样化输入交互。

# 3.2 渲染效果说明

在 Ambari 的页面渲染体系中,displayType 是决定控件展现的关键配置。不同 displayType 会直接关联不同的控件组件,比如单选、复选、密码框、目录、多行文本区等。

# 3.2.1 displayType 映射表

displayType 对应控件视图 渲染效果 使用场景
user / group App.ServiceConfigTextFieldUserGroupWithID 用户/组输入文本框 设置用户或组属性
checkbox / boolean App.ServiceConfigCheckbox 渲染复选框 启用/禁用功能的布尔配置
boolean-inverted App.ServiceConfigCheckbox 渲染反向布尔复选框 反向布尔配置
password App.ServiceConfigPasswordField 密码输入框,字符隐藏 输入敏感信息
combobox App.ServiceConfigComboBox 下拉菜单 选定项选择
radio button App.ServiceConfigRadioButtons 单选按钮组 互斥选项选择
directories App.ServiceConfigTextArea 多行文本框,多目录路径输入 多路径配置
directory App.ServiceConfigTextField 单行文本框,目录路径输入 单目录配置
content App.ServiceConfigTextAreaContent 大文本区,长文本/脚本 配置脚本/大段文本
multiLine App.ServiceConfigTextArea 多行文本框,多行输入 长文本输入
custom App.ServiceConfigBigTextArea 超大文本框,支持复杂内容 复杂文本/配置文件输入
componentHost App.ServiceConfigMasterHostView 主机选择器 组件主机分配
label App.ServiceConfigLabelView 只读标签,仅展示 显示只读信息
componentHosts App.ServiceConfigComponentHostsView 主机多选列表,多个主机分配 多主机组件
supportTextConnection App.checkConnectionView 测试连接按钮 连通性检测
capacityScheduler App.CapacitySceduler YARN容量调度控件 调度策略设置
default App.ServiceConfigTextFieldWithUnit / App.ServiceConfigTextField 单行文本框,可附加单位 默认文本输入

# 3.2.2 渲染逻辑代码示例

【代码位置:app/models/configs/objects/service_config_property.js】

getViewClass: function (displayType, dependentConfigPattern, unit) {
    switch (displayType) {
        case 'user':
        case 'group':
            return App.ServiceConfigTextFieldUserGroupWithID;
        case 'checkbox':
        case 'boolean':
            return dependentConfigPattern ? App.ServiceConfigCheckboxWithDependencies : App.ServiceConfigCheckbox;
        case 'boolean-inverted':
            return App.ServiceConfigCheckbox;
        case 'password':
            return App.ServiceConfigPasswordField;
        case 'combobox':
            return App.ServiceConfigComboBox;
        case 'radio button':
            return App.ServiceConfigRadioButtons;
        case 'directories':
            return App.ServiceConfigTextArea;
        case 'directory':
            return App.ServiceConfigTextField;
        case 'content':
            return App.ServiceConfigTextAreaContent;
        case 'multiLine':
            return App.ServiceConfigTextArea;
        case 'custom':
            return App.ServiceConfigBigTextArea;
        case 'componentHost':
            return App.ServiceConfigMasterHostView;
        case 'label':
            return App.ServiceConfigLabelView;
        case 'componentHosts':
            return App.ServiceConfigComponentHostsView;
        case 'supportTextConnection':
            return App.checkConnectionView;
        case 'capacityScheduler':
            return App.CapacitySceduler;
        default:
            return unit ? App.ServiceConfigTextFieldWithUnit : App.ServiceConfigTextField;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# 3.2.3 displayType 为 radio button 的典型配置

image-20241004171245490

示例(app/data/configs/services/ranger_properties.js):

{
  "category": "RangerSettings",
  "displayType": "radio button",
  "filename": "ranger-admin-site.xml",
  "name": "ranger.authentication.method",
  "options": [
    {
      "displayName": "LDAP",
      "foreignKeys": [
        "ranger.ldap.group.roleattribute",
        "ranger.ldap.url",
        "ranger.ldap.user.dnpattern",
        "ranger.ldap.base.dn",
        "ranger.ldap.bind.dn",
        "ranger.ldap.bind.password",
        "ranger.ldap.referral",
        "ranger.ldap.user.searchfilter",
        "ranger.ldap.group.searchbase",
        "ranger.ldap.group.searchfilter"
      ]
    },
    {
      "displayName": "ACTIVE_DIRECTORY",
      "foreignKeys": [
        "ranger.ldap.ad.domain",
        "ranger.ldap.ad.url",
        "ranger.ldap.ad.base.dn",
        "ranger.ldap.ad.bind.dn",
        "ranger.ldap.ad.bind.password",
        "ranger.ldap.ad.referral",
        "ranger.ldap.ad.user.searchfilter"
      ]
    },
    {
      "displayName": "UNIX",
      "foreignKeys": [
        "ranger.unixauth.service.port",
        "ranger.unixauth.service.hostname",
        "ranger.unixauth.remote.login.enabled"
      ]
    },
    {
      "displayName": "PAM"
    },
    {
      "displayName": "NONE"
    }
  ],
  "radioName": "authentication-method",
  "serviceName": "RANGER"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# 3.3 前端数据流与配置处理链

# 3.3.1 不依赖后端的 JS 配置

位置:app/data/BIGTOP/site_properties.js

image-20241004170814855

module.exports = {
    configProperties: [
        {
            name: 'some_property',
            displayName: 'Some Property',
            description: 'Description of the property.',
            serviceName: 'BIGTOP',
            filename: 'bigtop-site.xml',
            category: 'General',
            displayType: 'text',
            isRequired: true
        },
        ...
    ]
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

代码注释和结构未删减

# 3.3.2 依赖切片的配置

位置:app/data/configs/site_properties.js

var includeSiteProperties = function () {
    var serviceNames = Array.prototype.slice.call(arguments);
    return serviceNames.reduce(function (acc, serviceName) {
        return acc.concat(require('data/configs/services/' + serviceName + '_properties'));
    }, []);
};

module.exports = {
    configProperties: includeSiteProperties(
        'accumulo',
        'ambari_infra_solr',
        'ambari_metrics',
        'falcon',
        'flume',
        'glusterfs',
        'hawq',
        'hbase',
        'hdfs',
        'hive',
        'kafka',
        'kerberos',
        'knox',
        'logsearch',
        'mapreduce2',
        'oozie',
        'ranger',
        'storm',
        'tez',
        'yarn',
        'zookeeper'
    )
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

所有 require 片段原样保留


# 3.3.3 前端渲染处理

位置: app/utils/config.js

image-20241004172241759

allPreDefinedSiteProperties: require('data/configs/site_properties').configProperties,

    preDefinedSiteProperties
:

function () {
    var serviceNames = App.StackService.find().mapProperty('serviceName').concat('MISC');
    return this.get('allPreDefinedSiteProperties').filter(function (p) {
        return serviceNames.contains(p.serviceName);
    });
}

.
property().volatile(),

    preDefinedSitePropertiesMap
:

function () {
    var map = {};
    this.get('preDefinedSiteProperties').forEach(function (c) {
        map[this.configId(c.name, c.filename)] = c;
    }, this);
    return map;
}

.
property('preDefinedSiteProperties'),
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

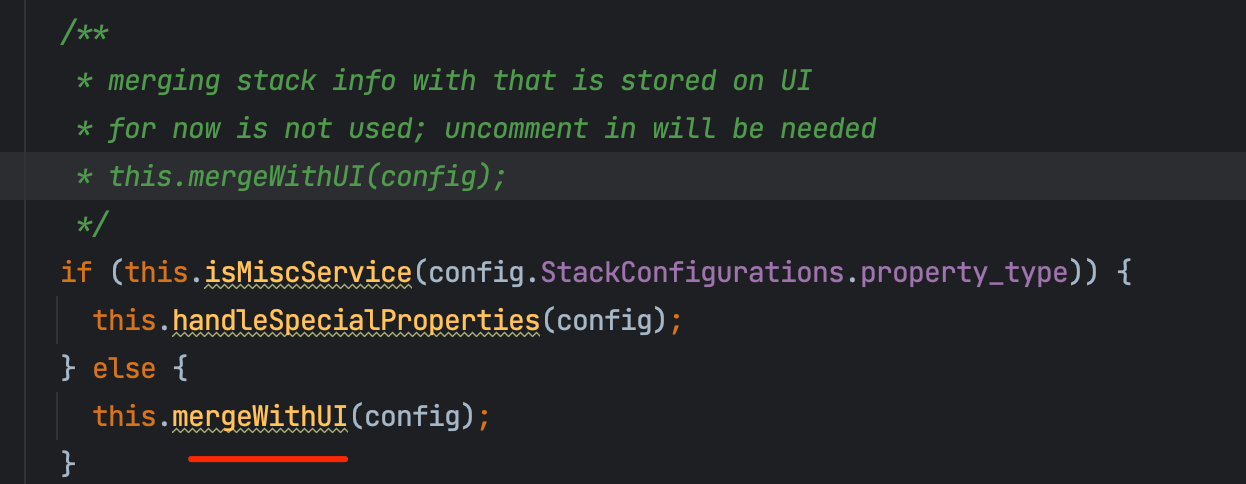

# 3.3.4 渲染过程

位置:app/mappers/configs/stack_config_properties_mapper.js

image-20241004172500648

getUIConfig: function (propertyName, siteName) {
    return App.config.get('preDefinedSitePropertiesMap')[App.config.configId(propertyName, siteName)];
}
,

mergeWithUI: function (config) {
    var c = config.StackConfigurations;
    var uiConfigProperty = this.getUIConfig(c.property_name, c.type);

    config.category = uiConfigProperty && uiConfigProperty.category ? uiConfigProperty.category : App.config.getDefaultCategory(true, c.type);

    if (uiConfigProperty) {
        config.index = (uiConfigProperty.index !== undefined) ? uiConfigProperty.index : Infinity;
        if (uiConfigProperty.displayType) {
            c.property_value_attributes.type = uiConfigProperty.displayType;
            config.radioName = uiConfigProperty.radioName;
            config.options = uiConfigProperty.options;
        }
        config.dependentConfigPattern = uiConfigProperty.dependentConfigPattern;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

# 3.5 使用的模板路径

  • 模板路径: app/templates/wizard/controls_service_config_radio_buttons.hbs

  • 模板代码:

image-20241004175017415 image-20241004175048148

{{!
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements.  See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership.  The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License.  You may obtain a copy of the License at
*
*     http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
}}

{{#each option in view.options}}
{{#unless option.hidden}}
<div class="radio">
    {{view App.ServiceConfigRadioButton nameBinding="view.name" valueBinding="option.displayName"
    radioIdBinding="option.radioId"}}
    <label {{bindAttr for="option.radioId" class="option.className" }}>
        {{option.displayName}} &nbsp;
    </label>
</div>
{{/unless}}
{{/each}}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 总结

  1. HBS 模板技术使前端控件高度灵活 🎨 Handlebars 模板结合数据源,动态生成各种配置控件 UI。
  2. displayType 直观驱动控件类型和展现 🛠️ 无论是主题配置还是高级页面,都可通过 displayType 精确控制展示。
  3. 自定义组件需前端深度集成 🚧 按钮/交互型控件需补充 JS 逻辑与模板扩展,不可单靠 JSON 配置实现。
#displayType#Ambari#前端渲染#控件映射#HBS模板
修改ambari样式-前端View扩展[一]

← 修改ambari样式-前端View扩展[一]

最近更新
01
Pandoc 缺失导致 SparkR 构建失败
06-08
02
Cyrus SASL/GSASL 缺失解决
06-07
03
Hadoop_3.3.4 编译实战 1.0.0+
06-06
更多文章>
Theme by Vdoing | Copyright © 2017-2025 JaneTTR | MIT License
  • 跟随系统
  • 浅色模式
  • 深色模式
  • 阅读模式
