一、编译目标与产物预览 结果导向

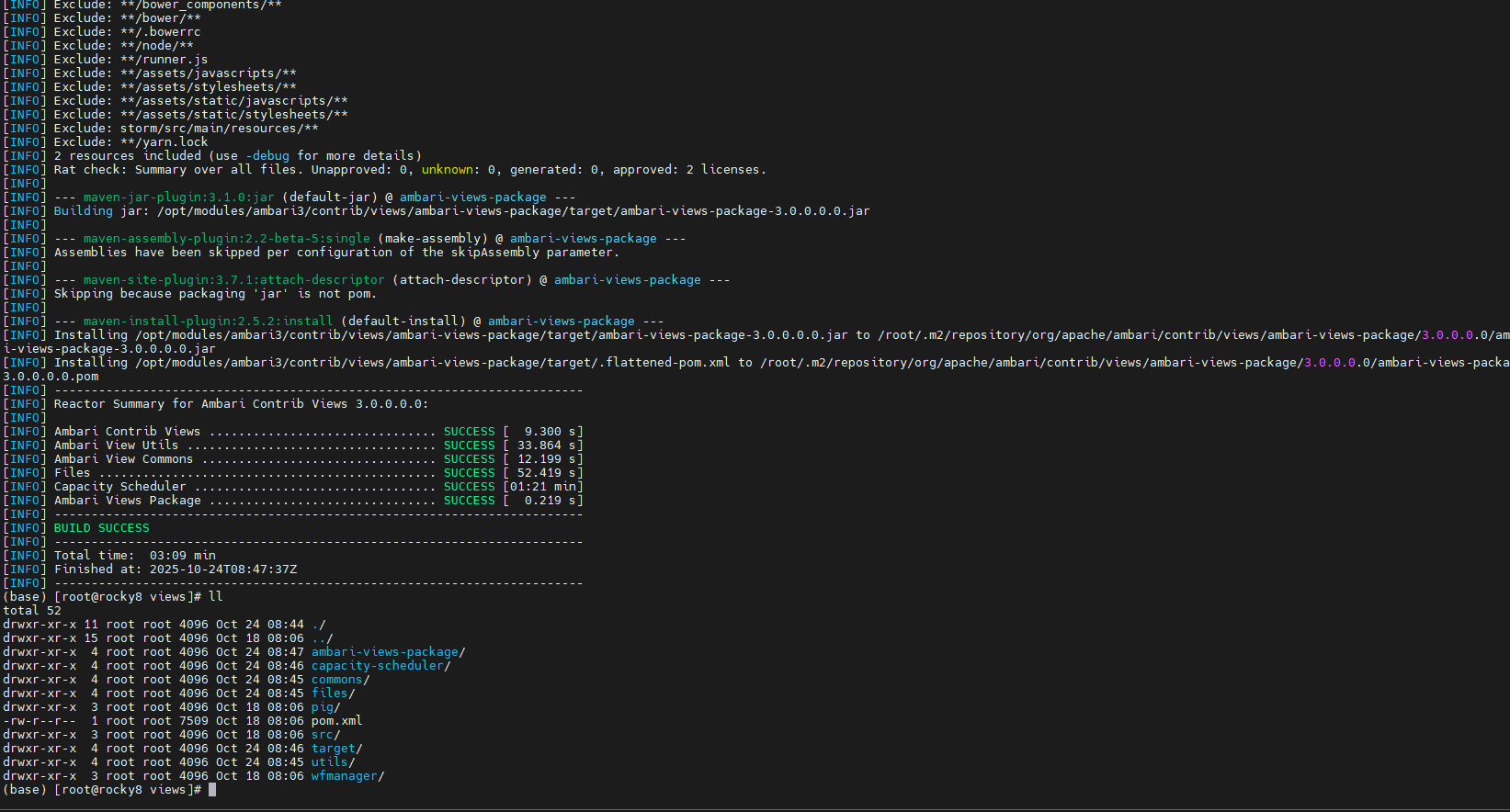

我们先看下编译成功的效果图。

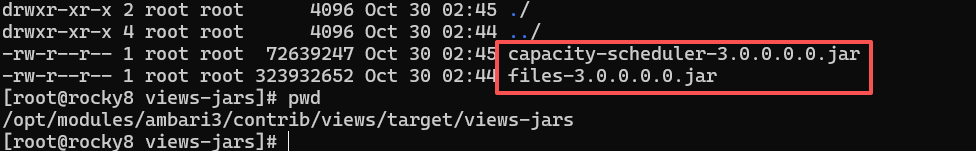

编译成功后，会得到下面的 jar 包。

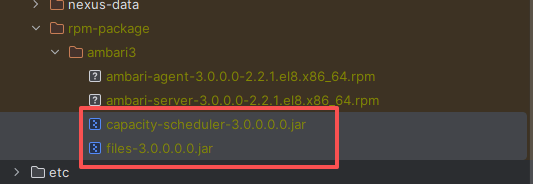

这些就是最终的 Ambari View 插件包，可直接放入 /var/lib/ambari-server/resources/views/ 或随 RPM 包一同分发。

二、编译准备 环境依赖

组件	推荐版本	说明
系统	Kylin V10 / Rocky 8 / Ubuntu 22.04	均可编译
JDK	JDK 17	Ambari 3.x 必须使用
Maven	3.8+	建议使用官方稳定版本
网络	可访问中央仓库	首次构建下载依赖较慢

环境变量配置示例

export JAVA_HOME=/opt/modules/jdk-17.0.2
export PATH=$JAVA_HOME/bin:$PATH
java -version

三、进入源码目录

Ambari Views 源码位于 ambari/contrib/views 下：

cd ambari/contrib/views

这里包含多个视图模块：

模块名称	说明
files	文件浏览视图（File View）
capacity-scheduler	YARN 调度器视图
ambari-view-commons	公共依赖模块
ambari-view-utils	工具模块
package	聚合与打包

四、编译命令 核心步骤

执行以下命令即可完成 views 模块编译：

mvn clean install -DskipTests

首次编译可能稍慢（下载依赖较多），后续编译通常 3～4 分钟即可。

编译完成后，你可以在 contrib/views/target/views-jars/ 目录下找到生成的 JAR 包。

五、打包 RPM/DEB 前的准备 整包构建

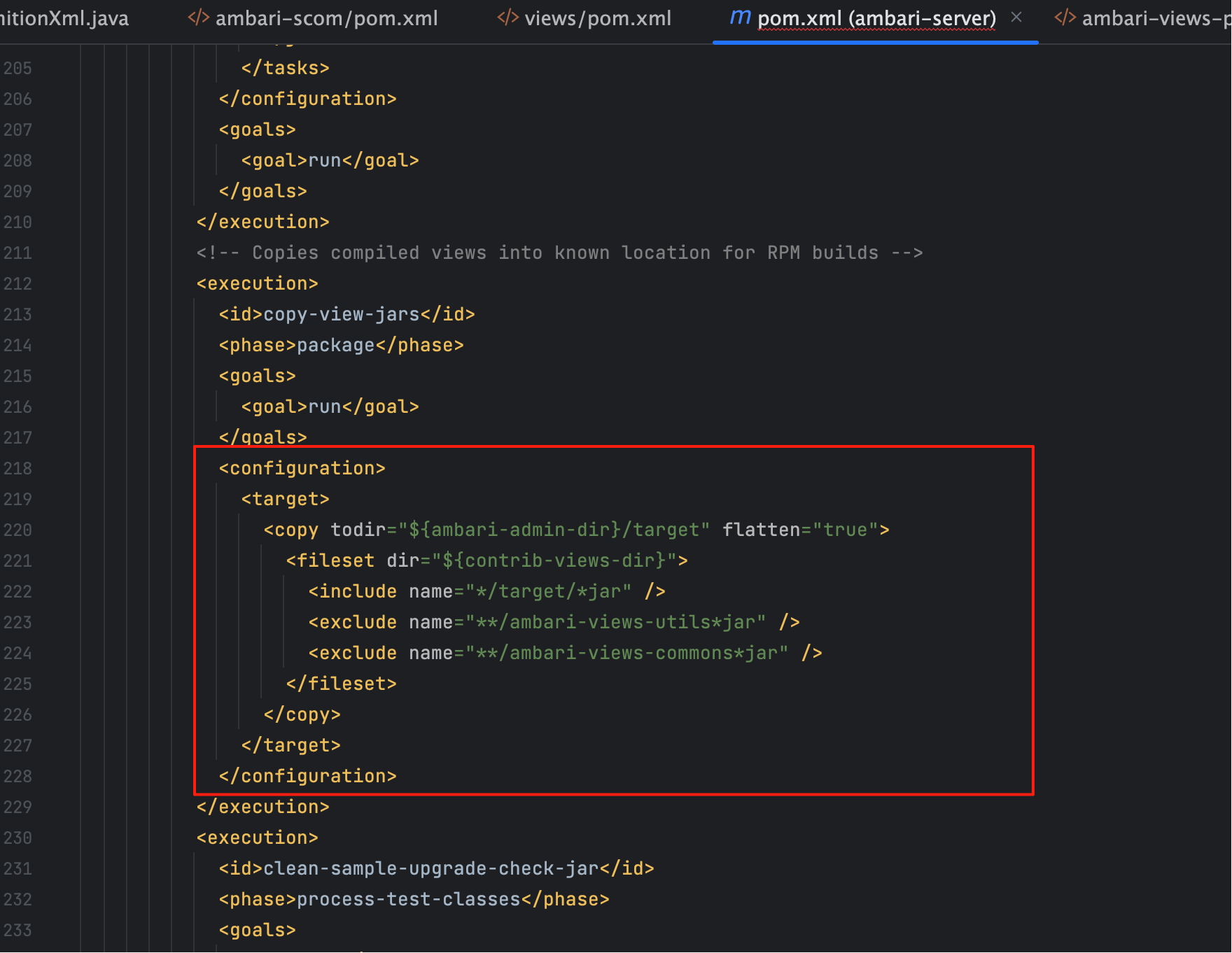

在执行 Ambari 整体打包之前，建议先编译好 views 子模块。 这样后续整包打包时，系统会自动将这些视图文件复制到 ambari-server/dist 中。

编译命令如下：

# 使用 JDK 17
export JAVA_HOME=/opt/modules/jdk-17.0.2
export PATH=$JAVA_HOME/bin:$PATH

java -version

# 先编 Views 子模块
cd /opt/modules/ambari3/contrib/views
mvn clean install -DskipTests

# 再执行整体打包
cd /opt/modules/ambari3
mvn package install \
rpm:rpm \
-Drat.skip=true \
-Dcheckstyle.skip=true \
-Dspotbugs.skip=true \
-Pkylin10-x86_64 \
-Dttbigdata.release.version=2.2.1 \
-DskipTests

六、源码与仓库参考

编译所需源码与环境均已准备，可前往以下仓库：

• 🔗 https://github.com/TtBigdata/ambari-env (opens new window)
• 🔗 https://gitee.com/tt-bigdata/ambari-env (opens new window)

七、常见编译报错 排查方向

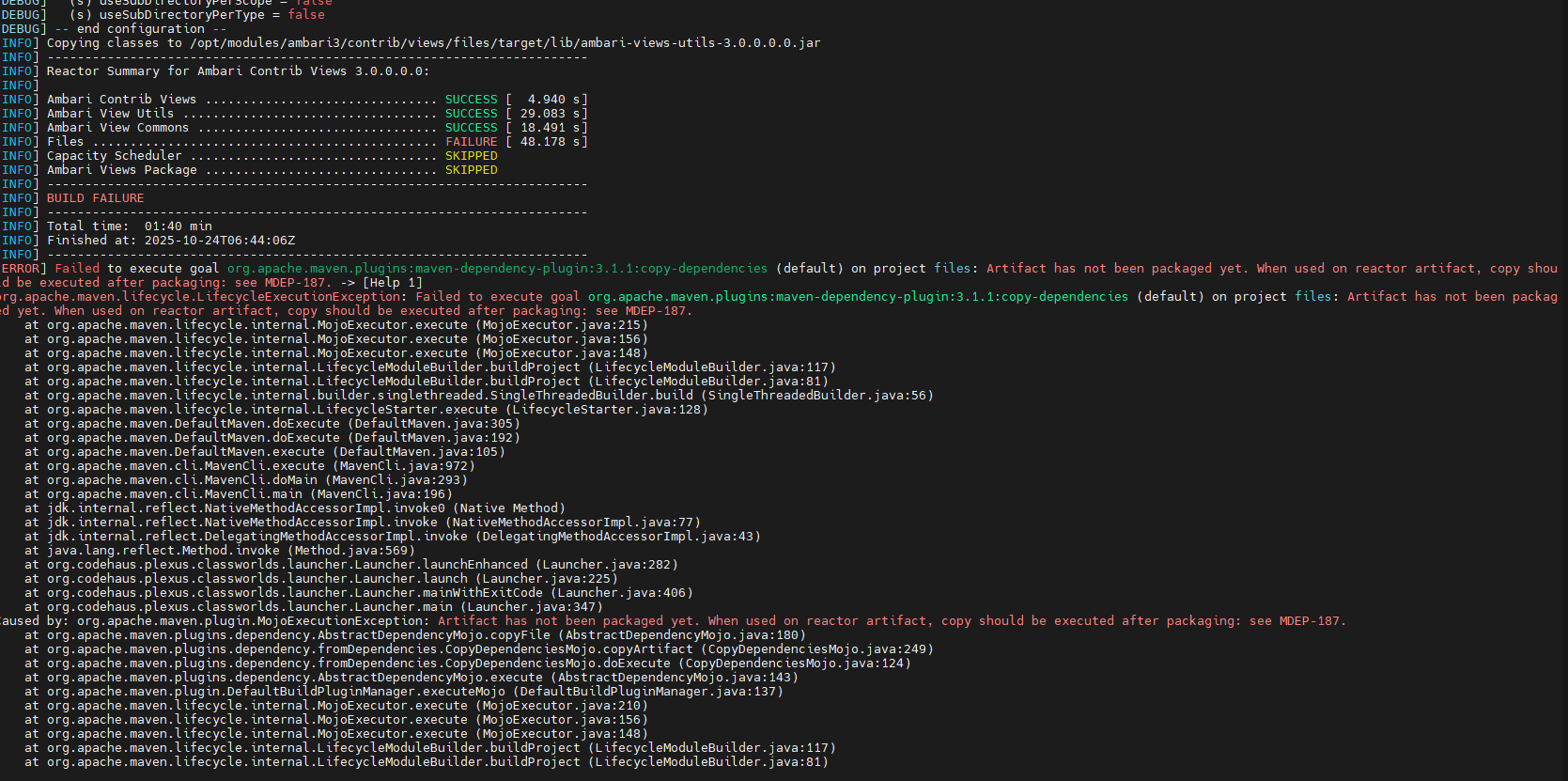

在实际构建中，部分开发者可能会遇到 MDEP-187 类报错。 典型现象如下图所示：

错误日志节选：

[DEBUG]   (f) session = org.apache.maven.execution.MavenSession@518cf84a
[DEBUG]   (s) silent = false
[DEBUG]   (s) skip = false
[DEBUG]   (f) stripClassifier = false
[DEBUG]   (s) stripVersion = false
[DEBUG]   (f) useBaseVersion = true
[DEBUG]   (s) useRepositoryLayout = false
[DEBUG]   (s) useSubDirectoryPerArtifact = false
[DEBUG]   (s) useSubDirectoryPerScope = false
[DEBUG]   (s) useSubDirectoryPerType = false
[DEBUG] -- end configuration --
[INFO] Copying classes to /opt/modules/ambari3/contrib/views/files/target/lib/ambari-views-utils-3.0.0.0.0.jar
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for Ambari Contrib Views 3.0.0.0.0:
[INFO]
[INFO] Ambari Contrib Views ............................... SUCCESS [  4.940 s]
[INFO] Ambari View Utils .................................. SUCCESS [ 29.083 s]
[INFO] Ambari View Commons ................................ SUCCESS [ 18.491 s]
[INFO] Files .............................................. FAILURE [ 48.178 s]
[INFO] Capacity Scheduler ................................. SKIPPED
[INFO] Ambari Views Package ............................... SKIPPED
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  01:40 min
[INFO] Finished at: 2025-10-24T06:44:06Z
[INFO] ------------------------------------------------------------------------
[ERROR] Failed to execute goal org.apache.maven.plugins:maven-dependency-plugin:3.1.1:copy-dependencies (default) on project files: Artifact has not been packaged yet. When used on reactor artifact, copy shou
ld be executed after packaging: see MDEP-187. -> [Help 1]
org.apache.maven.lifecycle.LifecycleExecutionException: Failed to execute goal org.apache.maven.plugins:maven-dependency-plugin:3.1.1:copy-dependencies (default) on project files: Artifact has not been packag
ed yet. When used on reactor artifact, copy should be executed after packaging: see MDEP-187.
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:215)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:156)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:148)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:117)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:81)
    at org.apache.maven.lifecycle.internal.builder.singlethreaded.SingleThreadedBuilder.build (SingleThreadedBuilder.java:56)
    at org.apache.maven.lifecycle.internal.LifecycleStarter.execute (LifecycleStarter.java:128)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:305)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:192)
    at org.apache.maven.DefaultMaven.execute (DefaultMaven.java:105)
    at org.apache.maven.cli.MavenCli.execute (MavenCli.java:972)
    at org.apache.maven.cli.MavenCli.doMain (MavenCli.java:293)
    at org.apache.maven.cli.MavenCli.main (MavenCli.java:196)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke0 (Native Method)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke (NativeMethodAccessorImpl.java:77)
    at jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke (DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke (Method.java:569)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launchEnhanced (Launcher.java:282)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launch (Launcher.java:225)
    at org.codehaus.plexus.classworlds.launcher.Launcher.mainWithExitCode (Launcher.java:406)
    at org.codehaus.plexus.classworlds.launcher.Launcher.main (Launcher.java:347)
Caused by: org.apache.maven.plugin.MojoExecutionException: Artifact has not been packaged yet. When used on reactor artifact, copy should be executed after packaging: see MDEP-187.
    at org.apache.maven.plugins.dependency.AbstractDependencyMojo.copyFile (AbstractDependencyMojo.java:180)
    at org.apache.maven.plugins.dependency.fromDependencies.CopyDependenciesMojo.copyArtifact (CopyDependenciesMojo.java:249)
    at org.apache.maven.plugins.dependency.fromDependencies.CopyDependenciesMojo.doExecute (CopyDependenciesMojo.java:124)
    at org.apache.maven.plugins.dependency.AbstractDependencyMojo.execute (AbstractDependencyMojo.java:143)
    at org.apache.maven.plugin.DefaultBuildPluginManager.executeMojo (DefaultBuildPluginManager.java:137)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:210)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:156)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:148)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:117)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:81)
    at org.apache.maven.lifecycle.internal.builder.singlethreaded.SingleThreadedBuilder.build (SingleThreadedBuilder.java:56)
    at org.apache.maven.lifecycle.internal.LifecycleStarter.execute (LifecycleStarter.java:128)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:305)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:192)
    at org.apache.maven.DefaultMaven.execute (DefaultMaven.java:105)
    at org.apache.maven.cli.MavenCli.execute (MavenCli.java:972)
    at org.apache.maven.cli.MavenCli.doMain (MavenCli.java:293)
    at org.apache.maven.cli.MavenCli.main (MavenCli.java:196)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke0 (Native Method)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke (NativeMethodAccessorImpl.java:77)
    at jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke (DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke (Method.java:569)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launchEnhanced (Launcher.java:282)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launch (Launcher.java:225)
    at org.codehaus.plexus.classworlds.launcher.Launcher.mainWithExitCode (Launcher.java:406)
    at org.codehaus.plexus.classworlds.launcher.Launcher.main (Launcher.java:347)
[ERROR]
[ERROR]
[ERROR] For more information about the errors and possible solutions, please read the following articles:
[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/MojoExecutionException
[ERROR]
[ERROR] After correcting the problems, you can resume the build with the command
[ERROR]   mvn <args> -rf :files
(base) [root@rocky8 views]#

这种报错属于 Maven 执行顺序问题， 完整的排查和解决步骤已整理在以下文档中：

👉 MDEP-187 编译错误专篇：从根因到修复

八、使用时报错与页面异常 运行期问题

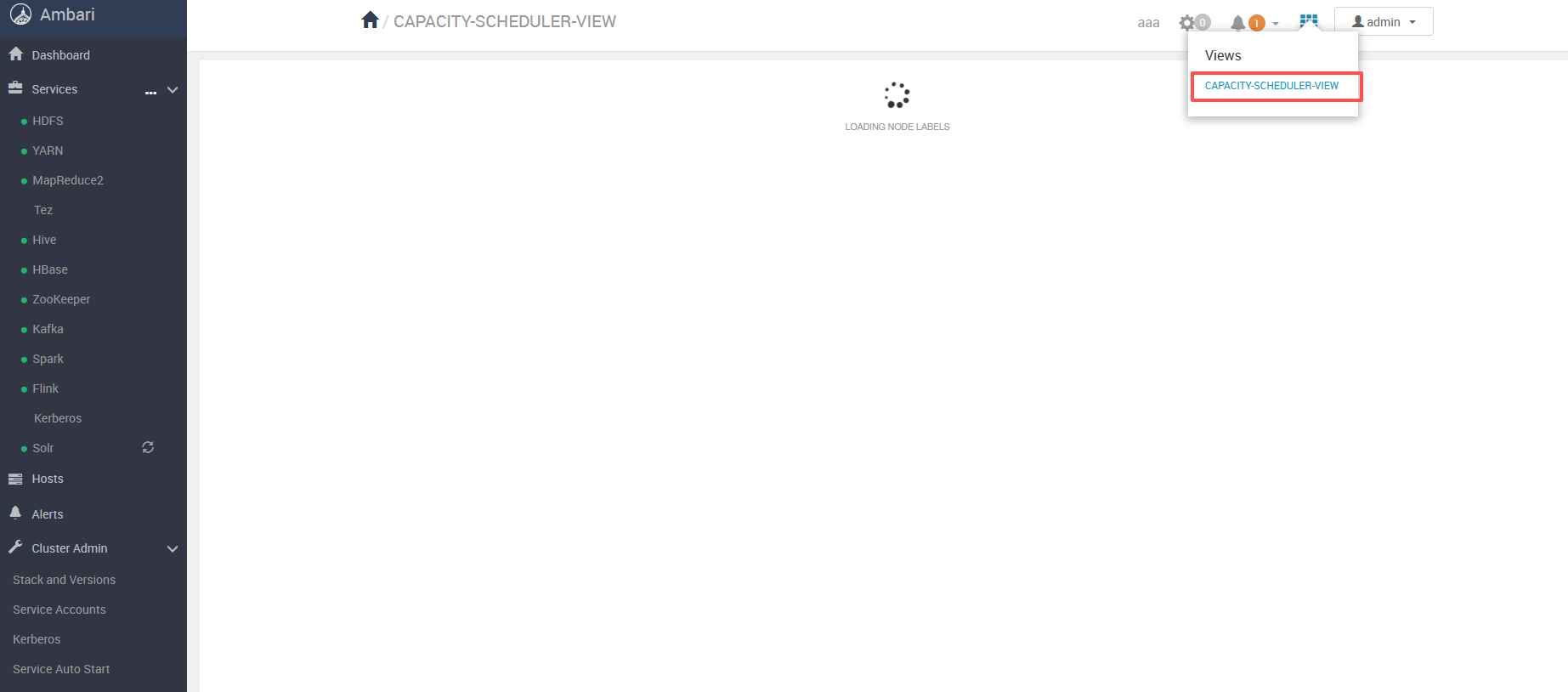

若视图界面出现如下情况：

页面卡在 loading node labels 阶段，说明 前端 View 无法正常从 YARN RM 获取资源数据。

该问题的多种成因与配置排查方案，请参考下列文章：

👉 Ambari Views 页面卡顿与加载异常处理
