一、问题背景

在 Ambari 中关闭 Kerberos 时，Kafka 会自动执行以下流程：

zookeeper-security-migration.sh --zookeeper.acl=unsecure

该脚本的作用是将 Kafka 在 Zookeeper 中的 ACL 从 secure 模式恢复为 unsecure 模式。
但在 BIGTOP 3.2.0（Ambari 3.x）默认实现中存在缺陷，导致关闭 Kerberos 过程中 Kafka 安全迁移失败。

二、版本提示（重要）

ttr-2.2.1 及以上版本已修复

从 ttr-2.2.1 开始，此问题已被彻底修复。
在新版本中，Ambari 会正确注入 JAAS 配置，Kafka 能正常访问 Zookeeper 并完成 ACL 回滚。
如你使用 ttr-2.2.0 或更早版本，请参考本篇手动修复。如在部署或二开中遇到类似问题，可联系作者 (opens new window) 获取补丁。

三、异常现场：Zookeeper Security Migration 执行失败

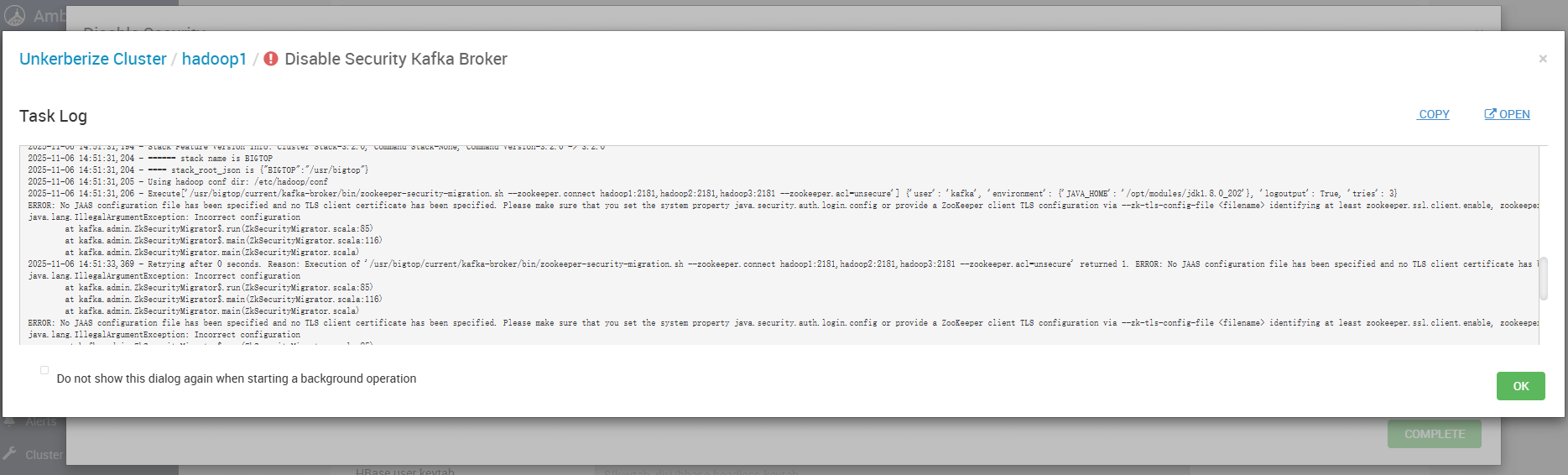

关闭 Kerberos 时，Ambari 执行 Kafka 安全迁移脚本并报错：

脚本报错内容如下：

stderr:
NoneType: None

The above exception was the cause of the following exception:

Traceback (most recent call last):
  File "/var/lib/ambari-agent/cache/stacks/BIGTOP/3.2.0/services/KAFKA/package/scripts/kafka_broker.py", line 173, in <module>
    KafkaBroker().execute()
  File "/usr/lib/ambari-agent/lib/resource_management/libraries/script/script.py", line 413, in execute
    method(env)
  File "/var/lib/ambari-agent/cache/stacks/BIGTOP/3.2.0/services/KAFKA/package/scripts/kafka_broker.py", line 152, in disable_security
    tries=3)
  File "/usr/lib/ambari-agent/lib/resource_management/core/base.py", line 168, in __init__
    self.env.run()
  File "/usr/lib/ambari-agent/lib/resource_management/core/environment.py", line 171, in run
    self.run_action(resource, action)
  File "/usr/lib/ambari-agent/lib/resource_management/core/environment.py", line 137, in run_action
    provider_action()
  File "/usr/lib/ambari-agent/lib/resource_management/core/providers/system.py", line 350, in action_run
    returns=self.resource.returns,
  File "/usr/lib/ambari-agent/lib/resource_management/core/shell.py", line 95, in inner
    result = function(command, **kwargs)
  File "/usr/lib/ambari-agent/lib/resource_management/core/shell.py", line 161, in checked_call
    returns=returns,
  File "/usr/lib/ambari-agent/lib/resource_management/core/shell.py", line 278, in _call_wrapper
    result = _call(command, **kwargs_copy)
  File "/usr/lib/ambari-agent/lib/resource_management/core/shell.py", line 493, in _call
    raise ExecutionFailed(err_msg, code, out, err)
resource_management.core.exceptions.ExecutionFailed: Execution of '/usr/bigtop/current/kafka-broker/bin/zookeeper-security-migration.sh --zookeeper.connect hadoop1:2181,hadoop2:2181,hadoop3:2181 --zookeeper.acl=unsecure' returned 1. ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)
 stdout:
2025-11-06 14:51:31,193 - ====== stack name is BIGTOP
2025-11-06 14:51:31,194 - ==== stack_root_json is {"BIGTOP":"/usr/bigtop"}
2025-11-06 14:51:31,194 - Stack Feature Version Info: Cluster Stack=3.2.0, Command Stack=None, Command Version=3.2.0 -> 3.2.0
2025-11-06 14:51:31,204 - ====== stack name is BIGTOP
2025-11-06 14:51:31,204 - ==== stack_root_json is {"BIGTOP":"/usr/bigtop"}
2025-11-06 14:51:31,205 - Using hadoop conf dir: /etc/hadoop/conf
2025-11-06 14:51:31,206 - Execute['/usr/bigtop/current/kafka-broker/bin/zookeeper-security-migration.sh --zookeeper.connect hadoop1:2181,hadoop2:2181,hadoop3:2181 --zookeeper.acl=unsecure'] {'user': 'kafka', 'environment': {'JAVA_HOME': '/opt/modules/jdk1.8.0_202'}, 'logoutput': True, 'tries': 3}
ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)
2025-11-06 14:51:33,369 - Retrying after 0 seconds. Reason: Execution of '/usr/bigtop/current/kafka-broker/bin/zookeeper-security-migration.sh --zookeeper.connect hadoop1:2181,hadoop2:2181,hadoop3:2181 --zookeeper.acl=unsecure' returned 1. ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)
ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)
2025-11-06 14:51:35,436 - Retrying after 0 seconds. Reason: Execution of '/usr/bigtop/current/kafka-broker/bin/zookeeper-security-migration.sh --zookeeper.connect hadoop1:2181,hadoop2:2181,hadoop3:2181 --zookeeper.acl=unsecure' returned 1. ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)
ERROR: No JAAS configuration file has been specified and no TLS client certificate has been specified. Please make sure that you set the system property java.security.auth.login.config or provide a ZooKeeper client TLS configuration via --zk-tls-config-file <filename> identifying at least zookeeper.ssl.client.enable, zookeeper.clientCnxnSocket, and zookeeper.ssl.keystore.location
java.lang.IllegalArgumentException: Incorrect configuration
	at kafka.admin.ZkSecurityMigrator$.run(ZkSecurityMigrator.scala:85)
	at kafka.admin.ZkSecurityMigrator$.main(ZkSecurityMigrator.scala:116)
	at kafka.admin.ZkSecurityMigrator.main(ZkSecurityMigrator.scala)

Command failed after 1 tries

核心问题即：

Ambari 执行该脚本时没有加载 kafka_jaas.conf，因此 Kafka 客户端无法进行 Kerberos 认证。

四、原因分析：Ambari 未传入 KAFKA_OPTS

问题源于 Ambari 的脚本：

services/KAFKA/package/scripts/kafka_broker.py

其中 disable_security 执行迁移脚本时 未附带 JVM 参数：

-Djava.security.auth.login.config=/etc/kafka/conf/kafka_jaas.conf

导致 Kafka 以“无认证”模式访问 Zookeeper，自然无法修改 ACL。

五、解决方案：显式注入 JAAS 配置

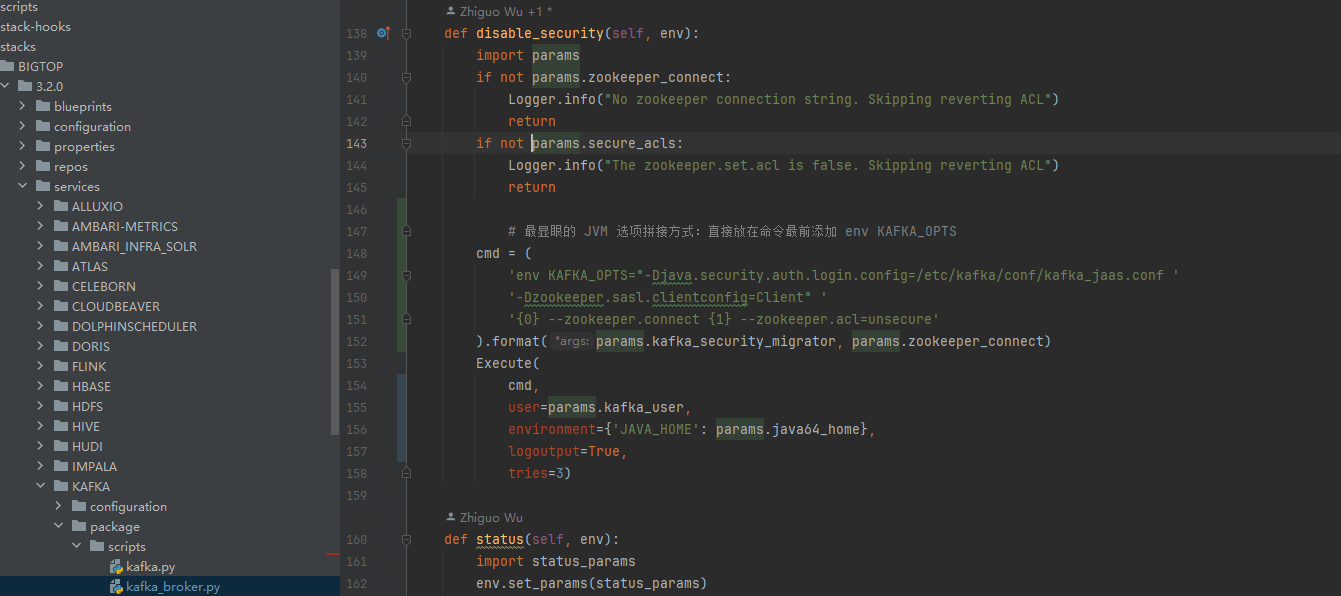

1、修改 kafka_broker.py

加入 KAFKA_OPTS，让迁移脚本能正确加载 JAAS：

def disable_security(self, env):
    import params
    if not params.zookeeper_connect:
        Logger.info("No zookeeper connection string. Skipping reverting ACL")
        return
    if not params.secure_acls:
        Logger.info("The zookeeper.set.acl is false. Skipping reverting ACL")
        return

    cmd = (
        'env KAFKA_OPTS="-Djava.security.auth.login.config=/etc/kafka/conf/kafka_jaas.conf '
        '-Dzookeeper.sasl.clientconfig=Client" '
        '{0} --zookeeper.connect {1} --zookeeper.acl=unsecure'
    ).format(params.kafka_security_migrator, params.zookeeper_connect)

    Execute(
        cmd,
        user=params.kafka_user,
        environment={'JAVA_HOME': params.java64_home},
        logoutput=True,
        tries=3
    )

2、Ambari 有两套脚本，需要全部替换

/var/lib/ambari-server/resources/stacks/BIGTOP/3.2.0/services/KAFKA/package/scripts/kafka_broker.py
/var/lib/ambari-agent/cache/stacks/BIGTOP/3.2.0/services/KAFKA/package/scripts/kafka_broker.py

如不替换 agent 侧，执行时仍然会调用旧版本。

六、替换后成功执行效果（完整截图）

修改后再次关闭 Kerberos，可看到迁移脚本能够正确运行。

成功日志：

最终日志输出：

stderr:
None
 stdout:
2025-11-06 15:46:07,433 - ====== stack name is BIGTOP
2025-11-06 15:46:07,433 - ==== stack_root_json is {"BIGTOP":"/usr/bigtop"}
2025-11-06 15:46:07,434 - Stack Feature Version Info: Cluster Stack=3.2.0, Command Stack=None, Command Version=3.2.0 -> 3.2.0
2025-11-06 15:46:07,450 - ====== stack name is BIGTOP
2025-11-06 15:46:07,450 - ==== stack_root_json is {"BIGTOP":"/usr/bigtop"}
2025-11-06 15:46:07,453 - Using hadoop conf dir: /etc/hadoop/conf
2025-11-06 15:46:07,454 - Execute['env KAFKA_OPTS="-Djava.security.auth.login.config=/etc/kafka/conf/kafka_jaas.conf -Dzookeeper.sasl.clientconfig=Client" /usr/bigtop/current/kafka-broker/bin/zookeeper-security-migration.sh --zookeeper.connect hadoop1:2181,hadoop2:2181,hadoop3:2181 --zookeeper.acl=unsecure'] {'user': 'kafka', 'environment': {'JAVA_HOME': '/opt/modules/jdk1.8.0_202'}, 'logoutput': True, 'tries': 3}
Warning: The following secure root paths do not exist in ZooKeeper: /controller
That might be due to an incorrect chroot is specified when executing the command.
[2025-11-06 15:46:10,144] WARN TGT renewal thread has been interrupted and will exit. (org.apache.zookeeper.Login)

Command completed successfully!

Kafka 安全回滚顺利完成，关闭 Kerberos 继续执行下一阶段。
