调用 Ranger API 返回 403 问题

# 一、现象描述

# 1.1 触发场景

在 Ranger Admin 高可用接入场景中，Ranger Admin 后端部署在多台主机，通过统一访问入口域名对外提供服务，例如：

统一入口：ranger-ha.hadoop.com:16080
后端 Ranger Admin：dev2:6080、dev3:6080

在部分 Ambari 3.0.0 版本中，开启此类访问入口后，Ambari 侧会在调用 Ranger Admin API 时出现异常。

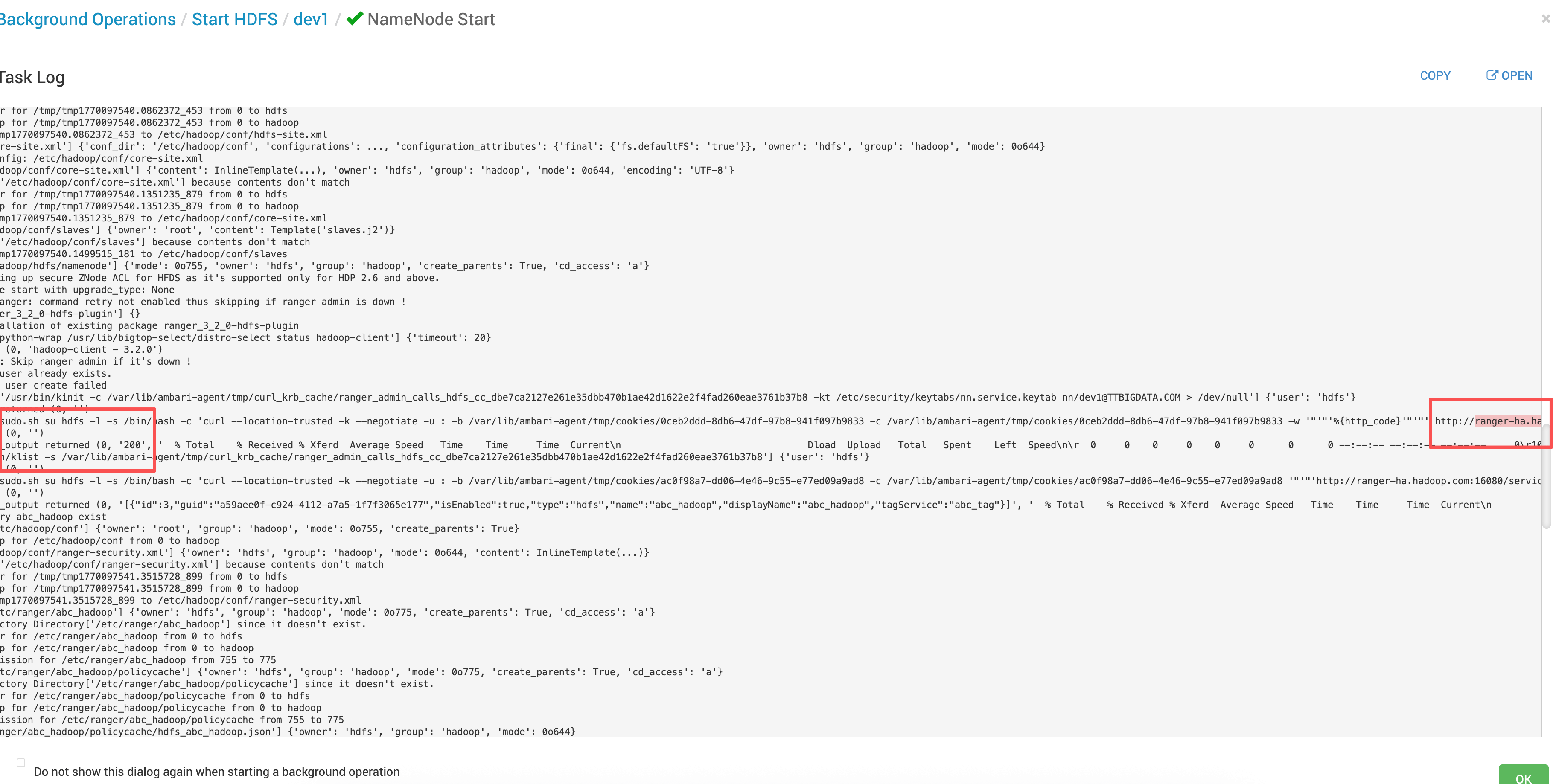

# 1.2 页面与界面提示

注意

该问题通常表现为：Ambari 在创建/校验 Ranger Service 或同步策略相关流程中失败。

# 二、日志链路还原

# 2.1 Ambari Agent 侧调用链路

从日志可以还原完整过程：

先使用 kinit -kt 获取 Kerberos 票据（成功）
访问 http://ranger-ha.hadoop.com:16080/login.jsp 返回 200（成功）
调用 Ranger API /service/public/v2/api/service?... 返回 403 Forbidden
返回体是 HTML 页面，导致上层按 JSON 解析失败，引发重试

2026-02-01 22:17:49,015 - checked_call['/usr/bin/kinit -c /var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8 -kt /etc/security/keytabs/nn.service.keytab nn/dev1@TTBIGDATA.COM > /dev/null'] {'user': 'hdfs'}
2026-02-01 22:17:49,203 - checked_call returned (0, '')
2026-02-01 22:17:49,205 - call['ambari-sudo.sh su hdfs -l -s /bin/bash -c 'curl --location-trusted -k --negotiate -u : -b /var/lib/ambari-agent/tmp/cookies/2adbf6b5-0820-41b8-b271-49a15a208476 -c /var/lib/ambari-agent/tmp/cookies/2adbf6b5-0820-41b8-b271-49a15a208476 -w '"'"'%{http_code}'"'"' http://ranger-ha.hadoop.com:16080/login.jsp --connect-timeout 10 --max-time 12 -o /dev/null 1>/tmp/tmp4hjpgiyg 2>/tmp/tmprgg1rwsd''] {'quiet': False, 'env': {'KRB5CCNAME': '/var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8'}}
2026-02-01 22:17:49,477 - call returned (0, '')
2026-02-01 22:17:49,478 - get_user_call_output returned (0, '200', '  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r100  4283  100  4283    0     0  51602      0 --:--:-- --:--:-- --:--:-- 50988')
2026-02-01 22:17:49,479 - call['/usr/bin/klist -s /var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8'] {'user': 'hdfs'}
2026-02-01 22:17:49,662 - call returned (0, '')
2026-02-01 22:17:49,663 - call['ambari-sudo.sh su hdfs -l -s /bin/bash -c 'curl --location-trusted -k --negotiate -u : -b /var/lib/ambari-agent/tmp/cookies/6fff69ac-04fc-43f3-9bc8-975f683537ff -c /var/lib/ambari-agent/tmp/cookies/6fff69ac-04fc-43f3-9bc8-975f683537ff '"'"'http://ranger-ha.hadoop.com:16080/service/public/v2/api/service?serviceName=abc_hadoop&serviceType=hdfs&isEnabled=true'"'"' --connect-timeout 10 --max-time 12 -X GET 1>/tmp/tmp3hxhy0gx 2>/tmp/tmpglfdsjwl''] {'quiet': False, 'env': {'KRB5CCNAME': '/var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8'}}
2026-02-01 22:17:49,913 - call returned (0, '')
2026-02-01 22:17:49,914 - get_user_call_output returned (0, '<!doctype html><html lang="en"><head><title>HTTP Status 403 – Forbidden</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 403 – Forbidden</h1></body></html>', '  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r100   431  100   431    0     0   7065      0 --:--:-- --:--:-- --:--:--  7183')
2026-02-01 22:17:49,916 - Will retry 4 time(s), caught exception: Error in call for getting Ranger service:
 Expecting value: line 1 column 1 (char 0). Sleeping for 8 sec(s)
2026-02-01 22:17:57,925 - checked_call['/usr/bin/kinit -c /var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8 -kt /etc/security/keytabs/nn.service.keytab nn/dev1@TTBIGDATA.COM > /dev/null'] {'user': 'hdfs'}
2026-02-01 22:17:58,115 - checked_call returned (0, '')
2026-02-01 22:17:58,117 - call['ambari-sudo.sh su hdfs -l -s /bin/bash -c 'curl --location-trusted -k --negotiate -u : -b /var/lib/ambari-agent/tmp/cookies/4865ee51-3ad8-4639-9bc7-36cf2ff61bf5 -c /var/lib/ambari-agent/tmp/cookies/4865ee51-3ad8-4639-9bc7-36cf2ff61bf5 '"'"'http://ranger-ha.hadoop.com:16080/service/public/v2/api/service?serviceName=abc_hadoop&serviceType=hdfs&isEnabled=true'"'"' --connect-timeout 10 --max-time 12 -X GET 1>/tmp/tmp25td_qq3 2>/tmp/tmpfsexgd_9''] {'quiet': False, 'env': {'KRB5CCNAME': '/var/lib/ambari-agent/tmp/curl_krb_cache/ranger_admin_calls_hdfs_cc_dbe7ca2127e261e35dbb470b1ae42d1622e2f4fad260eae3761b37b8'}}
2026-02-01 22:17:58,345 - call returned (0, '')
2026-02-01 22:17:58,346 - get_user_call_output returned (0, '<!doctype html><html lang="en"><head><title>HTTP Status 403 – Forbidden</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 403 – Forbidden</h1></body></html>', '  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current\n                                 Dload  Upload   Total   Spent    Left  Speed\n\r  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0\r100   431  100   431    0     0  11648      0 --:--:-- --:--:-- --:--:-- 11648')
2026-02-01 22:17:58,346 - Will retry 3 time(s), caught exception: Error in call for getting Ranger service:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

检查点	结果
kinit	成功
/login.jsp	200
/service/public/v2/api/service	403
返回体	HTML（Forbidden 页面）
上层异常	JSON 解析失败 + retry

# 三、Ranger Admin 侧日志特征与处理入口

# 3.1 Ranger Admin 侧典型报错

Ranger Admin 侧通常会出现如下 Kerberos 认证异常（保留原样）：

2026-01-31 22:12:53,741 [http-nio-6080-exec-6] WARN [RangerKrbFilter.java:510] Authentication exception: GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
org.apache.hadoop.security.authentication.client.AuthenticationException: GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.authenticate(KerberosAuthenticationHandler.java:349)
        at org.apache.ranger.security.web.filter.RangerKrbFilter.doFilter(RangerKrbFilter.java:465)
        at org.apache.ranger.security.web.filter.RangerKRBAuthenticationFilter.doFilter(RangerKRBAuthenticationFilter.java:359)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.apache.ranger.security.web.filter.RangerSSOAuthenticationFilter.doFilter(RangerSSOAuthenticationFilter.java:283)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:166)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)
        at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
        at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
        at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:112)
        at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:82)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.session.ForceEagerSessionCreationFilter.doFilterInternal(ForceEagerSessionCreationFilter.java:45)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)
        at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)
        at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
        at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:494)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
        at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:682)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:367)
        at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:639)
        at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
        at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:932)
        at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1695)
        at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
        at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
        at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        at java.lang.Thread.run(Thread.java:748)
Caused by: org.ietf.jgss.GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
        at sun.security.jgss.krb5.Krb5Context.acceptSecContext(Krb5Context.java:856)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:342)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:285)
        at sun.security.jgss.spnego.SpNegoContext.GSS_acceptSecContext(SpNegoContext.java:906)
        at sun.security.jgss.spnego.SpNegoContext.acceptSecContext(SpNegoContext.java:556)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:342)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:285)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.runWithPrincipal(KerberosAuthenticationHandler.java:375)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.access$000(KerberosAuthenticationHandler.java:67)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler$2.run(KerberosAuthenticationHandler.java:341)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler$2.run(KerberosAuthenticationHandler.java:338)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.authenticate(KerberosAuthenticationHandler.java:337)
        ... 57 common frames omitted
Caused by: sun.security.krb5.KrbException: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96
        at sun.security.krb5.KrbApReq.authenticate(KrbApReq.java:278)
        at sun.security.krb5.KrbApReq.<init>(KrbApReq.java:149)
        at sun.security.jgss.krb5.InitSecContextToken.<init>(InitSecContextToken.java:108)
        at sun.security.jgss.krb5.Krb5Context.acceptSecContext(Krb5Context.java:829)
        ... 70 common frames omitted
2026-01-31 22:13:02,167 [http-nio-6080-exec-1] WARN [RangerKrbFilter.java:510] Authentication exception: GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
org.apache.hadoop.security.authentication.client.AuthenticationException: GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.authenticate(KerberosAuthenticationHandler.java:349)
        at org.apache.ranger.security.web.filter.RangerKrbFilter.doFilter(RangerKrbFilter.java:465)
        at org.apache.ranger.security.web.filter.RangerKRBAuthenticationFilter.doFilter(RangerKRBAuthenticationFilter.java:359)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.apache.ranger.security.web.filter.RangerSSOAuthenticationFilter.doFilter(RangerSSOAuthenticationFilter.java:283)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:166)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)
        at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
        at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
        at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:112)
        at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:82)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.session.ForceEagerSessionCreationFilter.doFilterInternal(ForceEagerSessionCreationFilter.java:45)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
        at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
        at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)
        at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)
        at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
        at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:494)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
        at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:682)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:367)
        at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:639)
        at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
        at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:932)
        at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1695)
        at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
        at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
        at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        at java.lang.Thread.run(Thread.java:748)
Caused by: org.ietf.jgss.GSSException: Failure unspecified at GSS-API level (Mechanism level: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96)
        at sun.security.jgss.krb5.Krb5Context.acceptSecContext(Krb5Context.java:856)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:342)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:285)
        at sun.security.jgss.spnego.SpNegoContext.GSS_acceptSecContext(SpNegoContext.java:906)
        at sun.security.jgss.spnego.SpNegoContext.acceptSecContext(SpNegoContext.java:556)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:342)
        at sun.security.jgss.GSSContextImpl.acceptSecContext(GSSContextImpl.java:285)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.runWithPrincipal(KerberosAuthenticationHandler.java:375)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.access$000(KerberosAuthenticationHandler.java:67)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler$2.run(KerberosAuthenticationHandler.java:341)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler$2.run(KerberosAuthenticationHandler.java:338)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.authentication.server.KerberosAuthenticationHandler.authenticate(KerberosAuthenticationHandler.java:337)
        ... 57 common frames omitted
Caused by: sun.security.krb5.KrbException: Invalid argument (400) - Cannot find key of appropriate type to decrypt AP REP - AES128 CTS mode with HMAC SHA1-96
        at sun.security.krb5.KrbApReq.authenticate(KrbApReq.java:278)
        at sun.security.krb5.KrbApReq.<init>(KrbApReq.java:149)
        at sun.security.jgss.krb5.InitSecContextToken.<init>(InitSecContextToken.java:108)
        at sun.security.jgss.krb5.Krb5Context.acceptSecContext(Krb5Context.java:829)
        ... 70 common frames omitted

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164

# 3.2 现象归因说明

该类现象在部分 Ambari 3.0.0 版本的 Ranger HA 接入中较常见，核心矛盾集中在：

Kerberos 凭证（principal / keytab）与实际访问入口域名之间的不一致
Ambari 默认生成的 service.keytab 主要面向 xxxxx/主机名@REALM 形式
当访问链路通过 ranger-ha.hadoop.com 统一入口转发后，会出现匹配不上的情况

本篇仅记录现象与日志特征，不在此展开具体修复过程

具体的处理方式参考：调整 Kerberos Client 配置

# 3.3 调整后结果

启动正常

Ranger 上策略创建成功

#Kerberos #Ranger Admin #Haproxy #Ambari #Kylin V10

← [Step5] 对齐 Ranger HA 的凭证处理
